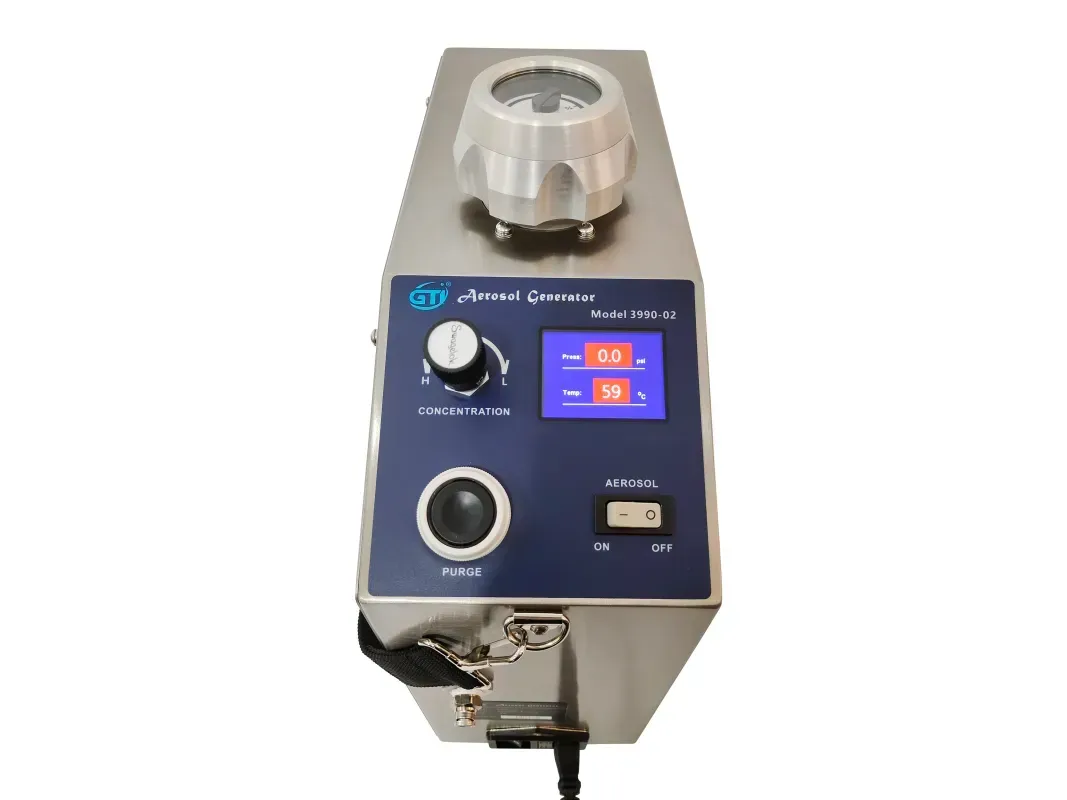

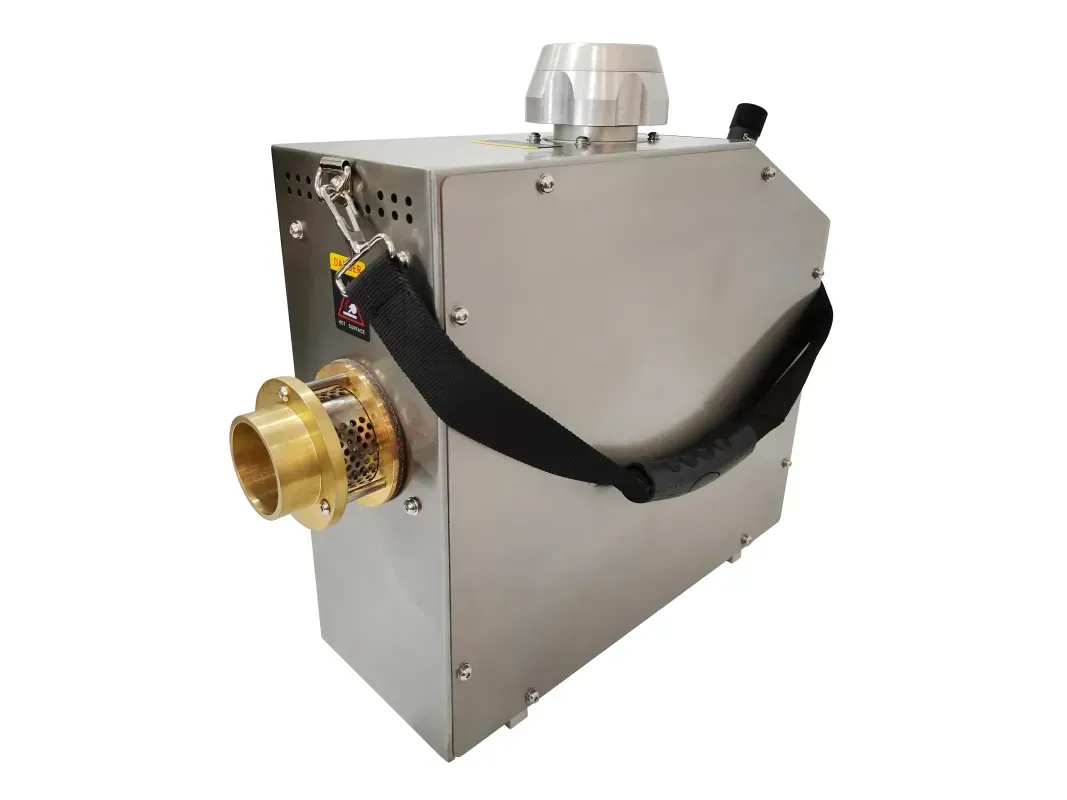

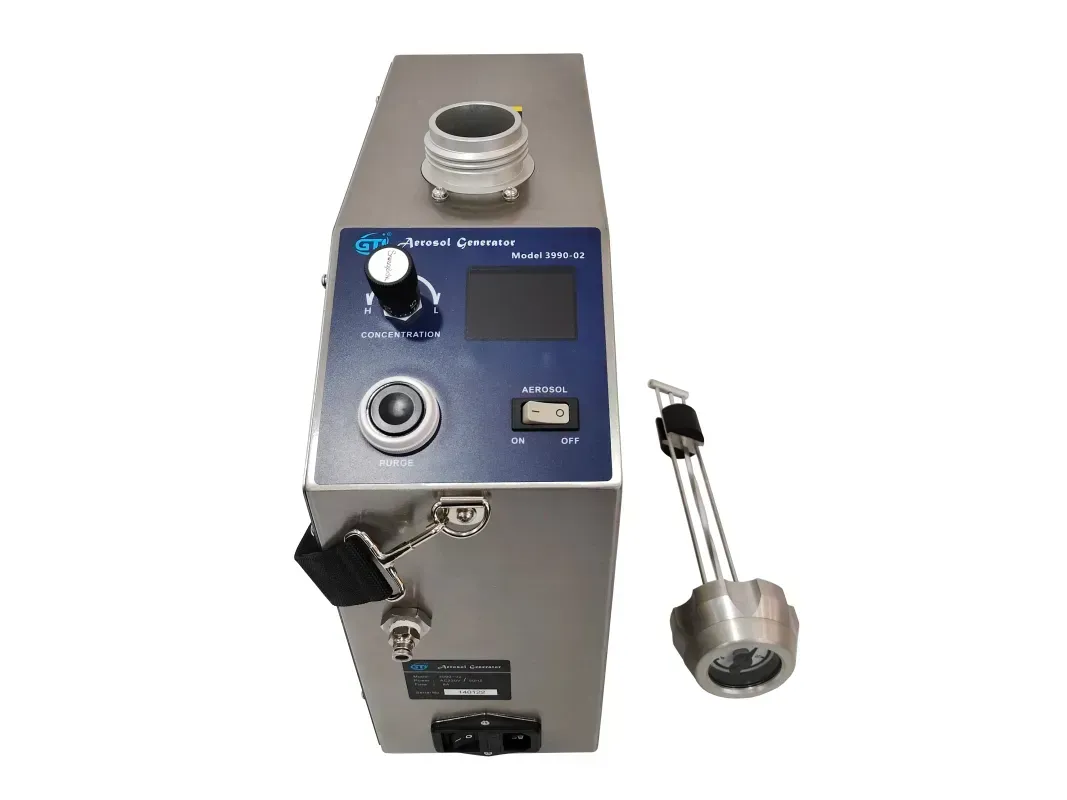

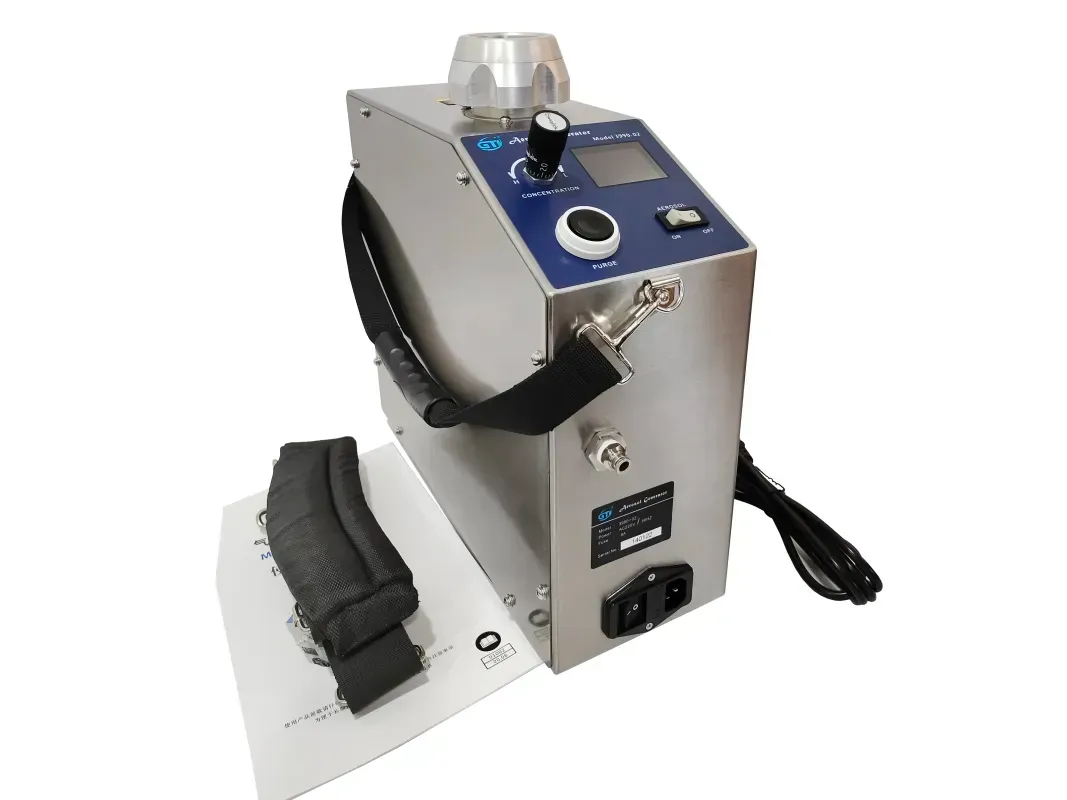

GTI Aerosol Generator Model 3990-02 (Thermal)

  • Output of aerosol with high concentration
  • Larger oil storage space, increased by 40% compared to traditional generator
  • An external LCD display to read temperature and pressure variations in real time
  • Applicable to different flow rates of air conditioning system
  • 2-min rapid heating
  • Multiple types of aerosols can be used


Brand: GTI

Product origin: China

Delivery time: One week

Supply capacity: Strong


This is an aerosol generator with a wide range of applications, available to centralized dust production for the air purification system of all clean-rooms.

  • Nuclear facilities
  • Pharmaceutical manufacturers
  • Medical facilities and cleanrooms
  • Independent filter certifiers

Model: 3990-02


Airflow Range: 500 ~ 70000cfm (833 ~ 119000m³/h)


Concentration Range:

10µg/ L @ flow 70000cfm;

100µg/ L @ flow 7000cfm


Heating Time:

＜2-3min

operation temperature to reach 370℃


Aerosol Reagent: PAO-4/ DOS/ DEHS/ Ondina EL/ DOP/ DEHP/ Mineral Oil


Aerosol Reagent: PAO-4/ DOP/ Ondina EL/ DOS/ White mineral oil/ Polyethylene glycol/ Corn oil


Air Source:

Nitrogen, Argon, Carbon Dioxide or Helium(50psi)

345kPa ±70kPa


Dimension: 430 × 140 × 350 mm (L × W × H)


Weight: 10 kg
