GTI Aerosol Generator Model 3990-01 (1 to 6 Laskin-Nozzles)

  • No need power supply
  • Three regulator valves for adjusting and control the aerosol concentration
  • Rugged stainless-steel constriction, compactive and potable design, more strengthen
  • 3" sanitary outlet flange as adapter kit


Brand: GTI

Product origin: China

Delivery time: One week

Supply capacity: Strong

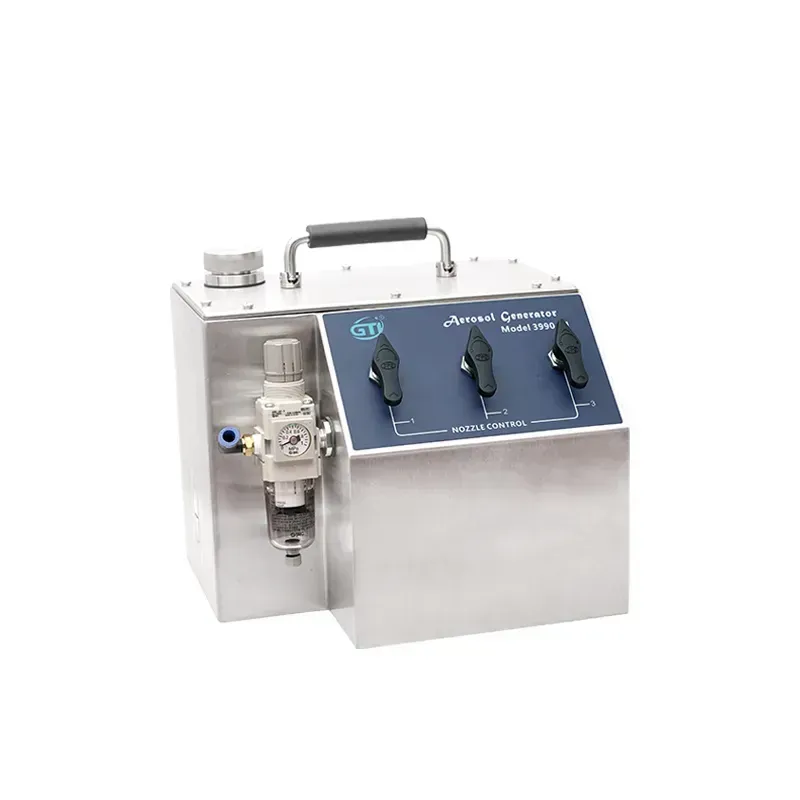

GTI Aerosol Generator Model 3990-01 is a portable compact aerosol generator, which attaching a source of clean, dry, compressed air into filter/regulator air inlet.

  •  Bio-safety cabinets, ceiling modules, small or portable clean-rooms, small HEPA filter units
  •  HEPA filter manufacturers
  •  Leak testing when filter installation

  •  Other applications for aerosol generator

Model: 3990-01


Aerosol Concentration:

100µg/ L @ Flow 810 cfm;

10µg/ L @ Flow 8100 cfm


Aerosol Output Range: 50 ~ 8100 cfm (85 ~ 13,700 m3/h)


Accuracy: 72 ~ 116psi (0.5 ~ 0.8MPa)


Repeatability: Min 2.65cfm (75L/min) /nozzle .20/23 psi (0.14/ 0.16MPa)


Aerosol Reagent: PAO-4/ DOP/ Ondina EL/ DOS/ White mineral oil/ Polyethylene glycol/ Corn oil


Generator Type: 1 ~ 6 Laskin-Nozzle


Dimension: 280 × 270 × 250 mm (L × W × H)


Weight: 8.4 kg

Items:  Quantity


Master (with potable handle): 1


Clamp: 1


Silicone gasket: 1


Chucking fixture (with hose fitting): 1


Hose clamp: 1


Instruction manual: 1
